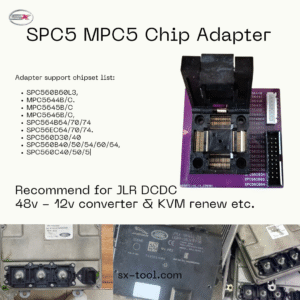

SPC5 / MPC5 Chip Adapter for Solder-Free Module Programming
For the professional JLR technician, bench-level module repair is the final frontier. However, the biggest risk is often not the programming itself, but the physical connection to the microcontroller (MCU). The SPC5 / MPC5 Chip Adapter is the elegant solution to this problem, designed to eliminate risky soldering and transform your workflow.
Eliminate Risk, Maximize Efficiency
Every technician knows the feeling of holding their breath while soldering dozens of tiny wires to a customer's valuable module. One slip, one bridged pin, or too much heat can turn a repair job into a replacement job. This adapter makes that a problem of the past.
- Completely Solder-Free: High-quality, spring-loaded pogo pins make a perfect electrical connection with the MCU's legs just by applying pressure. No soldering means zero risk of heat damage to the PCB or the chip.
- Precision and Consistency: The adapter's frame aligns perfectly over common chip packages (like QFP144 and QFP172), ensuring every pin connects correctly, every single time.
- Dramatically Faster Workflow: Save precious time on every job. Simply place the adapter, secure it in your BDM frame, and start programming. What used to take 30 minutes of careful soldering now takes 30 seconds.
Core JLR Applications:
This adapter is the key to unlocking fast, safe repair on many critical JLR modules:
- Airbag (RCM) Crash Data Reset: Securely connect to SPC560-family MCUs inside the Restraints Control Module to read/write the EEPROM and clear crash flags.
- ECU & BCM Cloning: Read the full flash and EEPROM from MPC5xxx-family MCUs found in many Engine Control Units and Body Control Modules.
- Bricked Module Recovery: Gain direct access to unresponsive modules to attempt a boot-mode recovery.
How to Use the Adapter
Integration into your existing bench setup is simple:
- Identify the target MCU on the module's PCB.
- Carefully align the adapter over the chip, ensuring the pin 1 indicator matches.
- Place the entire PCB, with the adapter on top, into a BDM frame (sold separately) to apply firm, even pressure. This is essential for a stable connection.
- Connect the adapter's ribbon cable to your primary bench programmer (e.g., SX SPC5 Programmer).
- You can now read and write to the chip as if you had soldered every pin.
Technical Information
- MCU Compatibility: Designed for NXP/Freescale MPC5xxx and SPC5xx family processors in QFP144, QFP172, and similar packages.
- Connection: Standard 16-pin IDC connector for easy integration with popular programmers.
- Construction: High-precision cut frame with durable, high-cycle pogo pins.
Frequently Asked Questions (FAQ)
Do I need a BDM frame to use this?
Yes. While you could technically hold it by hand, it is nearly impossible to maintain the stable, even pressure required for a reliable data transfer. A BDM frame is considered a mandatory companion tool for this adapter.
Which programmers is this adapter compatible with?
This adapter is designed to work with bench programmers that have a compatible pinout for MPC5/SPC5 processors, such as the SX SPC5 Programmer we offer. Please verify your programmer's pinout before purchase.
Is this really better than just soldering wires?
For a one-off job, soldering might be an option. But for a professional workshop performing these repairs regularly, the adapter is unquestionably superior. It is faster, safer, more reliable, and significantly more professional.
Perfect Your Bench Repair Process
Stop wasting time and taking unnecessary risks. The SPC5 / MPC5 Chip Adapter is a small investment that pays for itself in time saved and modules protected. Elevate your bench programming from a manual chore to a precise, automated process. Add this essential accessory to your toolkit today.
