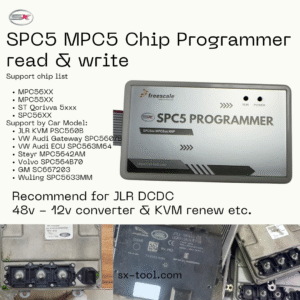

SX SPC5 Programmer for Automotive MPC5xxx / SPC56xx MCUs
For the advanced JLR technician, standard OBD-II diagnostics have their limits. When a module is unresponsive (“bricked”), needs to be cloned, or requires deep-level data manipulation, you need a bench tool that communicates directly with the microcontroller (MCU). The SX SPC5 Programmer is that tool—a robust, reliable interface designed specifically for the NXP/Freescale MPC5xxx and SPC5xx MCU families found in countless modern JLR modules.
Why is This Tool Essential for a JLR Specialist?
Simply put, the SX SPC5 Programmer grants you capabilities that are impossible with standard diagnostic tools like Pathfinder or SDD. It moves you from a “parts replacer” to a true “module repairer,” unlocking new service revenue and solving complex problems in-house.
Core Applications for JLR Workshops:
- Module Cloning: Read the full Flash and EEPROM data from an original, damaged module (ECU, BCM, RCM) and write it to a donor unit. This creates a perfect, plug-and-play clone, avoiding the need for expensive new parts and online JLR programming.
- Airbag (RCM) Crash Data Reset: Directly access the SPC560 MCU inside a locked Restraints Control Module to clear crash data (“soft” and “hard” crash events), making a used module reusable and saving your clients hundreds of pounds.
- “Bricked” Module Recovery: Recover modules that have failed during a software update via Pathfinder. The SX SPC5 programmer can often communicate in boot mode to re-flash the correct, working software when all other tools fail.
- Virginizing Used Modules: Erase immobilizer and VIN-specific data from a used module, returning it to a “virgin” state, ready to be programmed into a new vehicle using standard OEM tools.
- Immobilizer Data Transfer: Securely read IMMO data from a faulty KVM, BCM, or ECU and transfer it to a replacement, solving complex non-start issues.
Key Features of the SX SPC5 Programmer
- Wide MCU Support: Covers a vast range of protected and unprotected NXP/Freescale MPC5xxx and SPC56xx MCUs.
- Multiple Connection Methods: Supports JTAG, BDM, and AUD connections for flexible, on-bench access.
- Fast & Stable Operation: Engineered for fast read/write speeds and stable data transfer, crucial for large flash files.
- Built-in Current Sensing: Provides an extra layer of protection by monitoring the module's power consumption during operations.
- No Annual Subscription: Buy the tool, own the tool. No yearly fees for core functionality.
Example JLR Compatible Modules & MCUs:
This programmer has been verified to work on a wide array of JLR modules, including but not limited to:
- Engine Control Units (ECU): Bosch MED17, EDC17, and others using MPC5xxx processors.
- Restraints Control Modules (RCM / Airbag): Modules containing SPC560 (e.g., SPC560P50L3) and similar variants.
- Body Control Modules (BCM): Newer generation BCMs that utilize SPC-family processors for advanced functions.
- Transmission Control Units (TCU): Direct access for repair and cloning purposes.
What's Included in the Package?
- SX SPC5 Main Programmer Unit
- 16-Pin Connection Cable / Pigtail
- USB Cable
- 12V Power Adapter
- Software Access (via digital download)
System Requirements:
- Windows 7, 8, 10, or 11 (32-bit or 64-bit)
- Available USB Port
- Basic soldering skills are required for making connections to the module's PCB.
Take Control of Advanced Module Repair
Stop turning away profitable repair jobs and relying on expensive main dealers. The SX SPC5 Programmer is a fundamental investment for any workshop serious about advanced JLR module diagnostics, repair, and cloning. Add this powerful tool to your arsenal and expand your service capabilities today.
