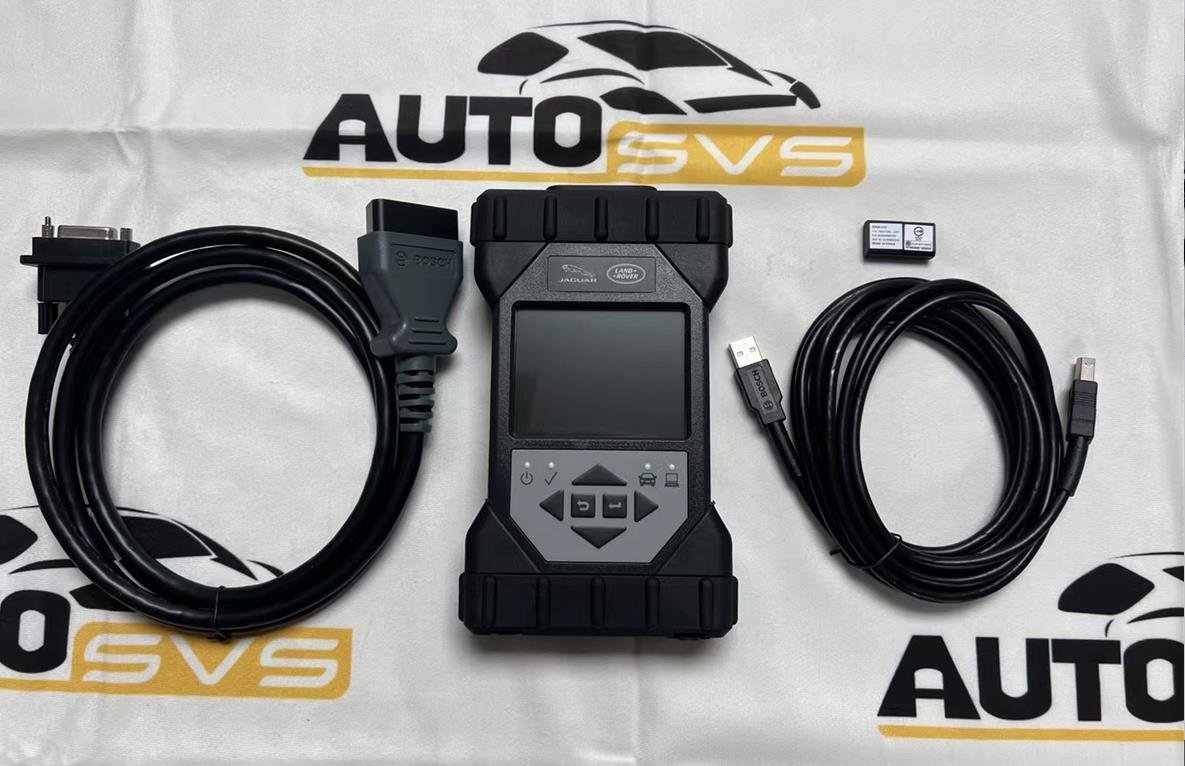

JLR-DOIP-VCI-WI-FI BOSCH ORIGINAL VCI (SDD PATHFINDER & TOPIX CLOUD)

JLR DOIP: Advanced Diagnostics with Bosch Original VCI

JLR DOIP (Diagnostics over Internet Protocol) is a critical communication standard for modern Jaguar Land Rover (JLR) vehicles, enabling high-speed data transfer for diagnostics, programming, and CCF (Car Configuration File) editing. As JLR transitions to Ethernet-based diagnostics, technicians must understand DOIP VCI (Vehicle Communication Interface) tools like the JLR-DOIP-VCI-WI-FI BOSCH ORIGINAL VCI to perform advanced tasks such as module programming, feature activation, and OEM retrofits. A common challenge this solves is the inability to communicate with newer JLR models (e.g., 2020+ Range Rover, Defender) using traditional CAN-based interfaces.

Technical Details Behind JLR DOIP

How DOIP Works in JLR Vehicles

JLR DOIP replaces legacy protocols (CAN, K-line) with Ethernet-based diagnostics, offering faster data transfer (up to 100Mbps). Key aspects:

• Uses ISO 13400 standard for IP-based vehicle communication.
• Requires a compatible DOIP VCI (e.g., Bosch Original VCI) to interface with JLR's TOPIX cloud.
• Supports secure gateway authentication (SGW) for protected access.

Step-by-Step DOIP Diagnostic Process

1. Connect the JLR-DOIP-VCI-WI-FI BOSCH ORIGINAL VCI to the vehicle’s Ethernet port (OBD-II).
2. Power the vehicle with a stable 30A power supply to prevent voltage drops during programming.
3. Launch JLR JET (Jaguar Land Rover Engineering Tool) or TOPIX and authenticate via SDD/Pathfinder.
4. Select the target ECU and perform CCF editing or software updates.
5. Verify changes post-programming with a vehicle scan.

Essential Tools for JLR DOIP Diagnostics

• JLR-DOIP-VCI-WI-FI BOSCH ORIGINAL VCI (available here) – OEM-grade interface for DOIP communication.
• Stable 12V power supply (minimum 30A) to maintain voltage during programming.
• TOPIX Cloud or JET software with valid JLR credentials.
• Ethernet-capable laptop with updated network drivers.

Common Challenges and Solutions

FAQ: JLR DOIP and Bosch VCI

Conclusion

Mastering JLR DOIP is essential for modern JLR diagnostics and programming. Key takeaways:

• DOIP enables high-speed Ethernet communication for 2020+ JLR models.
• The Bosch Original VCI is mandatory for secure access to TOPIX and CCF editing.
• Always use a stable power supply and updated software to avoid errors.

For complex JLR OEM retrofits and diagnostics, trust certified tools and expert guidance from https://topix-cloud.com/.
