Deconstructing the DA-DoIP VCI: A Technical Overview
Core Protocol and Functionality

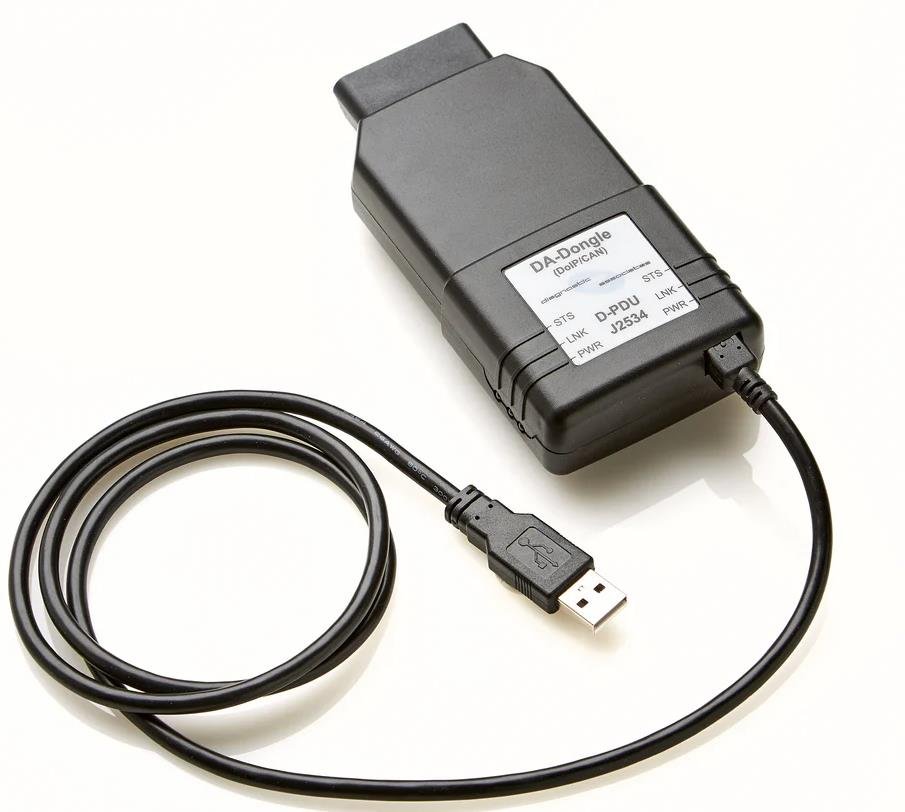

The DA-DoIP VCI (Diagnostic Adapter for Diagnostics over Internet Protocol) is not a simple pass-through cable. It is a sophisticated hardware interface compliant with the D-PDU API (Diagnostics Protocol Data Unit Application Programming Interface) and J2534-2 PassThru standards. Its primary function is to translate the diagnostic commands from your software (SDD, Pathfinder, JET, or TOPIx Cloud) into the DoIP protocol that modern JLR vehicle architectures (such as EVA 2.0) require. It handles the complex TCP/IP and UDP packetization, routing, and Ethernet-based communication over the vehicle's network, offloading this processing from your PC.
Step-by-Step Process: A Hypothetical Programming Scenario
While exact procedures vary by software and task, a typical workflow using a DA-DoIP VCI is as follows:
- Vehicle Preparation: Connect a stable, external power supply to the vehicle. Ensure the battery voltage is maintained above 12.5V throughout the session.
- Hardware Connection: Physically connect the DA-DoIP VCI to the vehicle's OBD-II port and to the technician's PC via a high-quality USB cable.
- Software Launch: Open your diagnostic session in TOPIx Cloud, Pathfinder, or SDD.
- Interface Selection: Within the software's settings, manually select and configure the D-PDU/J2534 API, pointing it to the correct DLL for your DA-DoIP VCI.
- VIN Discovery & Session Initiation: The software will use the VCI to broadcast a vehicle identification request. Upon successful VIN acquisition, a secure diagnostic session is established.
- Task Execution: Perform the required read/write operations, module programming, or CCF editing.
- Process Validation: Always follow the software's instructions precisely and allow it to complete all post-programming validation checks before disconnecting.
Essential Toolkit for DA-DoIP VCI Operations
To operate effectively, the DA-DoIP VCI requires a supported ecosystem:
- The VCI Itself: A reliable, fully compliant DA-DoIP VCI device, such as the one available from TOPIX Cloud.
- Stable Power Supply: A mandatory 30A+ regulated power supply to prevent voltage drops during flash programming.
- Software & Licenses: Valid installations and subscriptions for JLR's software (TOPIx, Pathfinder) and any necessary security access licenses (SAL).
- Robust PC Hardware: A laptop meeting JLR's specifications, with a solid-state drive (SSD) and ample RAM.
- Network Infrastructure: A stable, high-speed internet connection for cloud-based services like TOPIx.
Common DA-DoIP VCI Challenges and Expert Solutions
Connection Timeouts and Failures
Problem: Software fails to find the vehicle or connection drops mid-process.
Solution: Verify all physical connections. Ensure you are using the official drivers provided with your specific DA-DoIP VCI. Disable the PC's firewall and antivirus software temporarily, as they can block the D-PDU API traffic.
API Configuration Errors
Problem: “No API found” or “DLL load failed” errors.
Solution: Reinstall the VCI's driver package. Manually navigate to the software's communication settings and ensure the path to the correct `J2534.dll` or `D-PDU API.dll` file is specified.
Insufficient Power During Programming
Problem: Module programming fails, often with a voltage-related error code.
Solution: This is the most critical risk. Never attempt programming without a certified power supply connected. A voltage drop can permanently corrupt a control module.
FAQ: DA-DoIP VCI Technical Questions
Can I use a generic J2534 device for JLR DoIP?
No. While they may share the J2534 standard, generic devices often lack the specific DoIP implementation, processing power, and correct firmware required for reliable communication with JLR's complex vehicle architecture. A dedicated DA-DoIP VCI is essential.
Is the DA-DoIP VCI compatible with both SDD and TOPIx Cloud?
Yes, a high-quality DA-DoIP VCI that fully supports the D-PDU API standard is designed to be compatible with JLR's legacy SDD application as well as the modern TOPIx Cloud platform and Pathfinder engineering tool.
What is the difference between D-PDU and J2534 API?
J2534-1 is an older standard focused on legacy protocols (CAN, ISO9141). J2534-2 and the newer D-PDU API (ISO 22900-2) are extensions designed to handle modern automotive communications, including DoIP, which operates on Ethernet (IEEE 802.3). A modern DA-DoIP VCI will support both to ensure broad compatibility.
Conclusion: The Indispensable Diagnostic Gateway
Mastering the use of the correct DA-DoIP VCI is non-negotiable for any professional working on modern Jaguar Land Rover vehicles. It is the fundamental bridge that enables all advanced operations—from routine diagnostics to complex module programming and CCF editing in JET. Investing in a reliable, fully compliant interface, maintaining a stable workshop environment with a power supply, and thoroughly understanding the software configuration are the pillars of success. For technicians undertaking sophisticated JLR OEM retrofits and programming tasks, leveraging expert support and proven tools is paramount.
