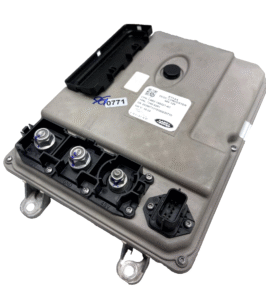

Expert Land Rover DC-DC Converter Repair Service (LR176473, etc.)
For JLR technicians and workshops, encountering a late-model Land Rover with a “Charging system fault” or “Start the engine to charge the battery” message is an increasingly common scenario. The root cause is often not the alternator or battery, but a failure of the critical DC-DC converter. At topix-cloud.com, we offer a professional, component-level Land Rover DC-DC converter repair service, providing a permanent and cost-effective solution to this prevalent issue.
The Critical Role of the DC-DC Converter in Modern JLR Platforms
In modern JLR architectures (L663 Defender, L462 Discovery, L405/L494 Range Rover, etc.), the DC-DC converter is far more than a simple voltage reducer. It is a sophisticated, CAN bus-integrated power module responsible for maintaining the vehicle's primary 12V electrical system. It precisely regulates voltage to power everything from the infotainment system and lighting to critical control modules, especially during engine-off or start-stop cycles. A failure in this unit can destabilize the entire vehicle network.
Common Symptoms of a Failing DC-DC Converter
A faulty DC-DC converter will manifest through a variety of electrical issues and specific Diagnostic Trouble Codes (DTCs). Key symptoms include:
- Red or yellow battery warning light on the instrument cluster.
- Persistent “Charging system fault” or “Low battery – Please start engine” messages.
- Warning messages that appear even with a healthy, fully charged battery.
- Unexplained battery drain when the vehicle is parked.
- Non-functional start-stop system.
- DTCs stored in the BCM or GWM, most notably
U3000-49(Control Module – Internal Electronic Failure) when logged against the DC-DC converter module.
Why Repair? The High Cost and Scarcity of New Units
The primary replacement part, LR176473 (superseding previous numbers), often faces a steep Land Rover DC DC converter price from dealers. Furthermore, these units can be on backorder for weeks or months, leaving a client's vehicle unusable. Our repair service addresses both of these issues directly by restoring your original unit to better-than-new specifications for a fraction of the cost and with a rapid turnaround time.
Our Component-Level Repair Process
We don't just swap parts; we conduct a forensic, component-level refurbishment of your module.
- Initial Diagnostics: The unit undergoes a full bench test to confirm the internal failure mode.
- Component Refurbishment: We disassemble the unit and use specialized equipment to replace failed internal components, such as MOSFETs, capacitors, and regulators, that are known points of failure.
- Board-Level Reinforcement: We analyze and reinforce critical solder joints and traces that are susceptible to heat and vibration stress.
- Final Validation & Testing: The repaired unit is put through a rigorous, full-load simulation on our custom JLR test bench to ensure it delivers stable voltage and communicates perfectly on the CAN network before being shipped back to you.
Land Rover DC-DC Converter Location Guide
Locating the converter is the first step. Here are the locations for the most common models:
- Defender DC-DC Converter Location (L663, including 2023 Defender DC DC Converter): The converter is located in the engine bay, on the right-hand side (passenger side in RHD markets), mounted low down behind the wheel arch liner. Access often requires removing the front-right wheel and liner.
- Range Rover DC to DC Converter LR176473 Location (L405/L494): Typically found in the rear luggage compartment, on the right-hand side behind the trim panel.
- Discovery 5 (L462) Location: Similar to the Defender, it is often located in the engine bay on the right-hand side, low down near the chassis rail.
Why Choose the topix-cloud.com Repair Service?
- Massive Cost Savings: Avoid the high replacement price of a new dealer part.
- Fast Turnaround: Minimize vehicle downtime compared to waiting for back-ordered parts.
- Enhanced Reliability: Our repairs address the original design weaknesses for a more robust, long-lasting solution.
- 12-Month Warranty: We stand behind our work with a comprehensive warranty for your peace of mind.
- Plug & Play: Your repaired unit is returned ready to install with no additional programming or coding required.
Frequently Asked Questions (FAQ)
Is there an official Land Rover DC/DC converter recall?
As of now, while the issue is widespread and well-documented within the technical community, there is no official global recall campaign for this component. JLR has addressed some cases via technical bulletins and warranty claims, but for out-of-warranty vehicles, owners are typically responsible for the repair cost.
What is the process for this repair service?
Simply purchase the repair service on this page. You will receive an email with shipping instructions. Carefully package and mail your faulty DC-DC converter to us. Our technicians will perform the repair and ship it back to you, typically within 2-3 business days of receipt.
Is this better than buying a used converter?
Absolutely. A used converter is a gamble—it likely suffers from the same inherent design flaws and could fail at any time. Our repair service corrects these flaws, resulting in a more reliable unit than a used or even a new OEM part.
Get Your Vehicle Back on the Road.
Don't let a faulty DC-DC converter keep your client's vehicle off the road. Choose the smart, reliable, and cost-effective solution. Order our expert Land Rover DC-DC converter repair service today and restore the vehicle's charging system to full functionality.
