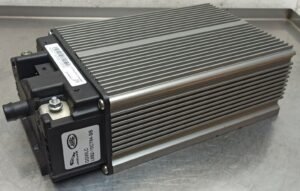

JLR Battery Energy Control Module (BECM) Repair & Cloning Service
For the JLR technician, confronting the debilitating “Hybrid System Not Available” fault on a Plug-in Hybrid Electric Vehicle (PHEV) is a complex challenge. The culprit is almost always an internal failure of the JLR Battery Energy Control Module (BECM). At topix-cloud.com, we provide the definitive, cost-effective solution with our expert BECM repair and cloning services.
Technical Overview: The BECM's Critical Function
The BECM is the master controller for the entire high-voltage (HV) battery system in JLR PHEV models (Range Rover, Defender, Velar, etc.). This sophisticated module is responsible for:
- Monitoring the state of charge (SoC) and state of health (SoH) of every cell in the HV battery pack.
- Managing charging and discharging cycles from both the engine and external chargers.
- Controlling the high-voltage contactors (relays).
- Communicating with the rest of the vehicle's network via CAN bus to report battery status and enable/disable electric drive modes.
A failure within the BECM renders the entire hybrid system inoperable as a primary safety precaution.
Common Symptoms of a Failing JLR BECM
A faulty BECM will trigger a specific and recognizable set of warnings and Diagnostic Trouble Codes (DTCs):
- The primary warning on the instrument cluster: “Hybrid System Not Available” or “External Charging System Fault“.
- The vehicle refuses to take a charge from an external power source.
- The vehicle will not enter EV (Electric Vehicle) mode and runs only on the combustion engine.
- A red or yellow triangle warning light is illuminated.
- Specific DTCs are logged, including:
P0DAB-00– Hybrid/EV Battery Pack Coolant Pump Control Circuit/OpenP0DE3-00– Hybrid/EV Battery Pack Coolant Temperature Sensor D CircuitU0111-87– Lost Communication With Battery Energy Control Module ‘B'
The Problem: Why You Can't Simply Swap a BECM
Replacing a BECM is not a simple swap. JLR integrates these modules deeply into the vehicle's security architecture. A new or used replacement BECM will not work because:
- It is security-locked to the original vehicle's VIN and immobilizer data.
- It contains unique calibration and Car Configuration File (CCF) data specific to the donor vehicle.
Installing a non-programmed module will result in a non-starting vehicle and a cascade of communication errors. A new module requires an online session with JLR's TOPIx Cloud to program it, a costly and often time-consuming process.
Our Solution: Expert Cloning & Repair
We offer a permanent “plug-and-play” solution that bypasses these challenges entirely.
Service 1: BECM Cloning (Recommended)
This is the fastest and most reliable option. You source a new or a known-good used BECM (with a matching part number), and send it to us along with your original, faulty unit. Our process:
- We perform a full data read of your original BECM, extracting the VIN, immobilizer data, CCF, and hybrid battery calibration files.
- We securely transfer this complete data set onto your replacement module.
- The replacement module is now a perfect “clone” of your original. It will be 100% plug-and-play, requiring no further programming or dealer intervention.
Service 2: BECM Repair
In cases where the internal fault is repairable, we can refurbish your original unit. We conduct a component-level diagnostics and replace failed internal circuitry, restoring full functionality.
Frequently Asked Questions (FAQ)
What is the difference between repair and cloning?
Repair fixes your original module. Cloning transfers all the critical data from your original module to a different (new or used) replacement module, making the replacement compatible with your car.
Which service do I need?
Cloning is generally recommended as it ensures you are using a physically different hardware unit, which can be beneficial if the original module has extensive board-level damage. Purchase the cloning service and send us both your original module and your sourced replacement.
Do I need to send my vehicle or other modules?
No. This is a mail-in service. We only need the BECM modules themselves, not the vehicle.
Is this a permanent fix?
Yes. Our cloning service correctly transfers all necessary data for a permanent solution. Our repairs address the common failure points within the BECM for long-term reliability. We back our work with a 12-month warranty.
Restore Full Hybrid Functionality
Don't let a failed BECM sideline your client's expensive JLR PHEV. Choose the professional, cost-effective solution to get it back on the road quickly. Order our JLR BECM Cloning Service and eliminate the need for expensive dealer programming.
