Technical Guide: JLR ClearSight Rear View Camera Retrofit

For the professional JLR technician, advanced work with the JLR Engineering Tool (JET) and Car Configuration File (CCF) editing is paramount for executing complex OEM retrofits that enhance vehicle safety and functionality. This expertise is critical when integrating systems that were not part of a vehicle's original build specification. A prime example is the JLR ClearSight Rear View Camera Retrofit, which addresses the common problem of a limited or obstructed rearward view, a significant issue in SUVs like the Range Rover and Range Rover Sport, especially when the cargo area is loaded.

Technical Architecture of the ClearSight Rear View System

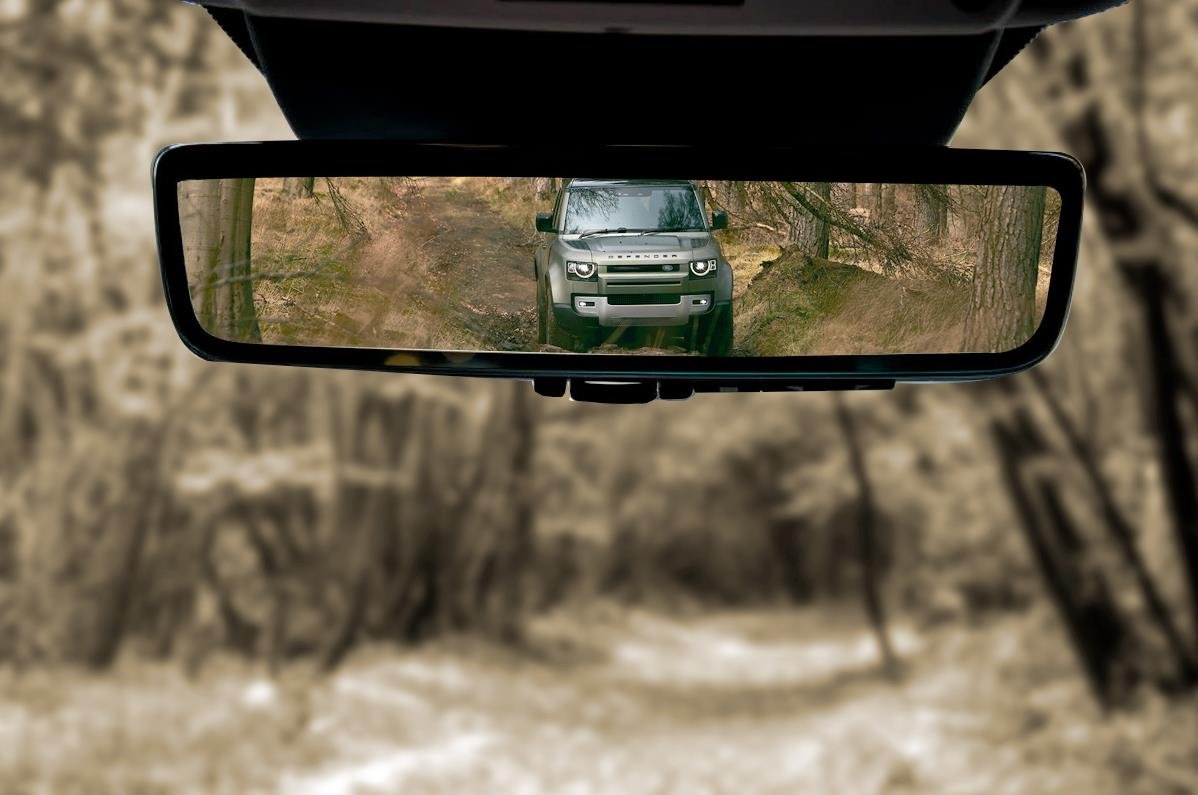

The JLR ClearSight Rear View Camera system is an advanced vision system that replaces the conventional interior rearview mirror with a dual-mode device. It combines a standard electrochromic (auto-dimming) mirror with an embedded Liquid Crystal Display (LCD).

System Logic and Component Integration

The system's operation is managed by a dedicated processor within the mirror assembly. When the driver activates the digital view (typically by flipping a tab on the mirror housing), the reflective layer is disabled, and the LCD displays a real-time, high-definition video feed from a rear-mounted camera. This camera is specifically designed for a wide dynamic range to handle challenging lighting conditions, such as direct headlights at night. The video signal is transmitted to the mirror via a shielded coaxial cable, while power and control signals, including the switch command to toggle between modes, are handled over a dedicated CAN bus connection or a LIN bus to the Body Control Module (BCM) or Overhead Control Module (OCM).

Hypothetical Step-by-Step Retrofit Process

Disclaimer: This is a generalized procedural outline. Always consult official JLR technical documentation, wiring diagrams, and installation guides for vehicle-specific instructions.

1. Pre-Installation System Verification: Connect a DOIP VCI and perform a full vehicle scan. Verify the vehicle's electrical architecture can support the retrofit and check for any pre-existing faults.
2. Hardware Installation:
   • Replace the standard interior mirror with the ClearSight mirror assembly.
   • Install the dedicated rear-view camera in its designated location (e.g., within the high-level brake light housing), ensuring a clear, unobstructed field of view.
   • Route the OEM-grade wiring harness from the camera to the mirror, following factory paths to avoid interference and ensure proper grounding and shielding.
3. JET Session and CCF Backup: Log in to TOPIx with a valid subscription. Launch JET and establish a secure session. Before any changes, read and save a complete backup of the vehicle's original CCF.
4. CCF Configuration Editing: Navigate the CCF tree to enable the feature. Key modules typically include:
   • Body Control Module (BCM): Enable the ClearSight mirror and camera.
   • Overhead Control Module (OCM) or Camera Module: Configure the camera type and input signal.
   • Central Configuration: Activate the overall ClearSight Rear View function.
5. Write CCF and Module Reset: Write the modified CCF blocks back to the vehicle. Perform a module reset/reboot on the BCM and OCM.
6. Camera Calibration: This is a critical step. Using the guided functions in JLR's diagnostic software, perform a static calibration of the rear-view camera. This involves positioning calibration targets at specific distances behind the vehicle to align the image perspective correctly.
7. Post-Installation Validation: Initiate a vehicle sleep cycle. Upon wake-up, clear any fault codes. Test both the reflective and digital modes of the mirror. Verify the image is clear, correctly aligned, and switches seamlessly between modes.

Essential Toolkit for ClearSight Retrofit

This complex retrofit demands professional-grade equipment and specific components.

• DOIP VCI: A high-quality Vehicle Communication Interface supporting Diagnostics over Internet Protocol is essential for CCF editing and camera calibration.
• Stable Power Supply: A professional battery maintainer is mandatory during all programming and calibration steps.
• JLR Software Access: An active JLR subscription for TOPIx and the JLR Engineering Tool (JET) is required.
• Calibration Targets: Official JLR camera calibration targets and a measuring tape are necessary for the alignment procedure.
• OEM Retrofit Kit: For a reliable and complete installation, technicians must use the official JLR ClearSight Rear View Camera Retrofit kit, which includes the specific mirror, camera, and vehicle-dedicated wiring harness.

Common Challenges and Technical Resolution

Technicians may encounter several specific issues:

• “Camera Fault” or “System Unavailable”: This is often a CCF configuration error. Verify that all related modules (BCM, OCM) have been correctly programmed. Also, check the physical wiring, especially the video coaxial cable for damage or poor connections.
• Poor Image Quality or Distortion: This is typically a result of an incorrect or skipped camera calibration. The calibration process is not optional and must be performed precisely according to JLR's specifications.
• Digital Mode Does Not Engage: Check the operation of the physical toggle switch on the mirror. Diagnose the LIN or CAN communication between the mirror and the BCM/OCM. A faulty mirror assembly is a possible cause.
• Image is Reversed or Incorrectly Oriented: This indicates a fundamental configuration error in the CCF, where the camera type or installation location is defined incorrectly. Re-check the CCF parameters against a known-good configuration from a factory-equipped vehicle.

Conclusion

The JLR ClearSight Rear View Camera Retrofit is a sophisticated procedure that integrates hardware installation with advanced software configuration. Success is contingent upon meticulous attention to detail during the physical fitment, precise CCF editing across multiple modules using tools like a DOIP VCI, and the rigorous execution of the camera calibration process. This retrofit exemplifies the high level of skill required for modern JLR OEM retrofits, transforming vehicle functionality and safety.
